✦ Sketch Render Studio

Turn your Blender scene into a sketch, blueprint, or clay render — without touching a single material.

The complete guide: installation, all five presets, and the full workflow, step by step.

Overview

Blender's Line Art system, taken to the extreme.

Sketch Render Studio automates Blender's native Line Art (Grease Pencil) system to turn any scene into a sketch, blueprint, clay, or line art render — no manual material, modifier, or compositing setup. Pick a preset, hit render, done.

  1. 01Installation — from zero to your first render in five minutes.
  2. 02The five presets — a different style for every purpose.
  3. 03Custom presets — save your own look.
  4. 04Batch render and compositing — produce a full set without repeating the process.

4.3 — 5.2+

One universal package, no separate versions

3

Operating systems — Windows, macOS, Linux

EEVEE / Cycles

Supported render engines

01 · Installation

Five clicks and you're in.

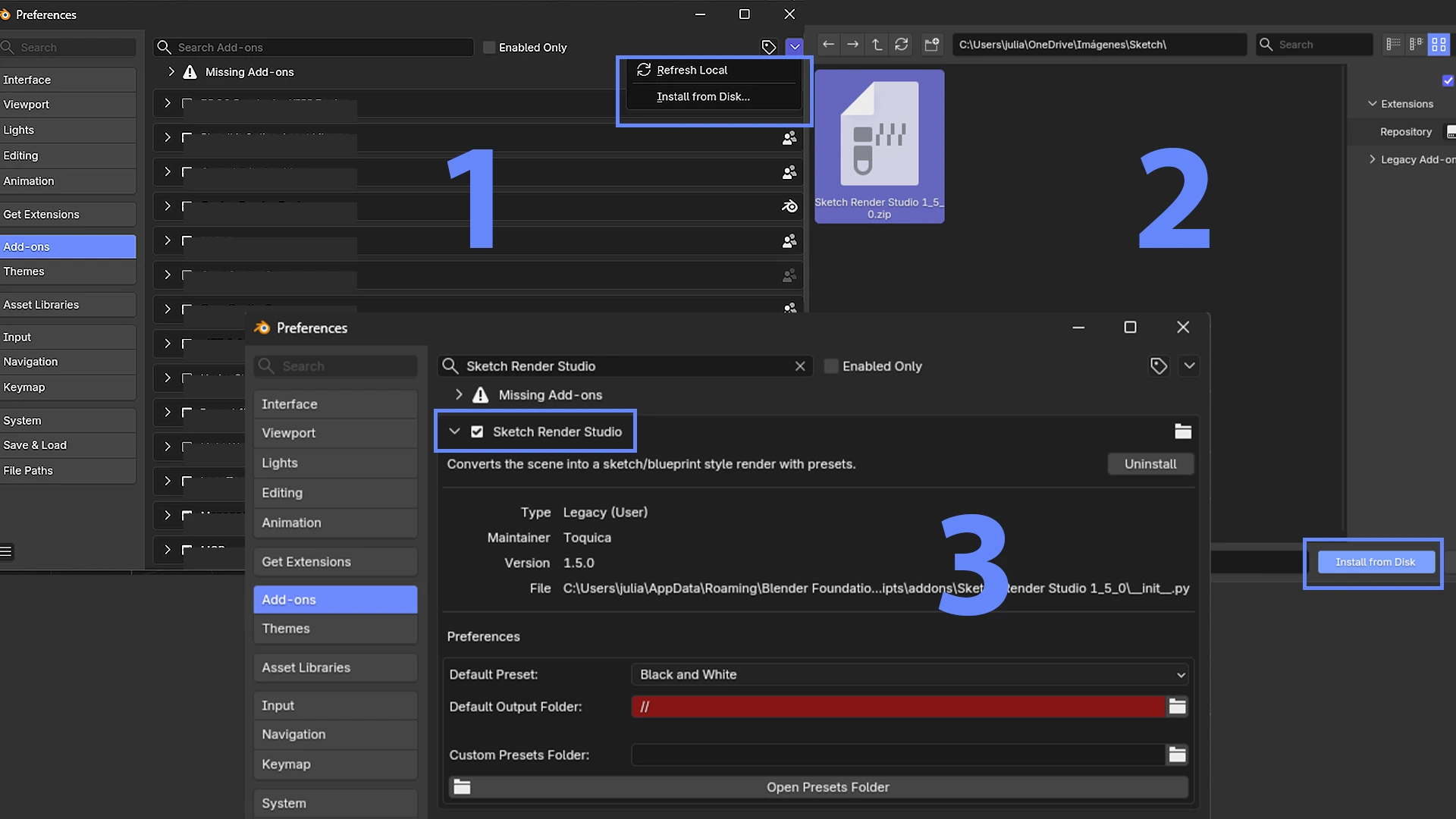

  1. Download the Sketch Render Studio .zip from Superhive.
  2. Open Blender and go to Edit > Preferences > Add-ons.
  3. Open the dropdown menu in the top right and choose Install from Disk…
  4. Select the downloaded .zip and confirm.
  5. Verify it's enabled by finding “Sketch Render Studio” in the list.

The addon's file or folder name shouldn't contain periods — Blender can truncate the module name on install. Use hyphens if you need to rename it manually.

Edit > Preferences > Add-ons panel with Sketch Render Studio enabled

Interface

Every control, in a single panel.

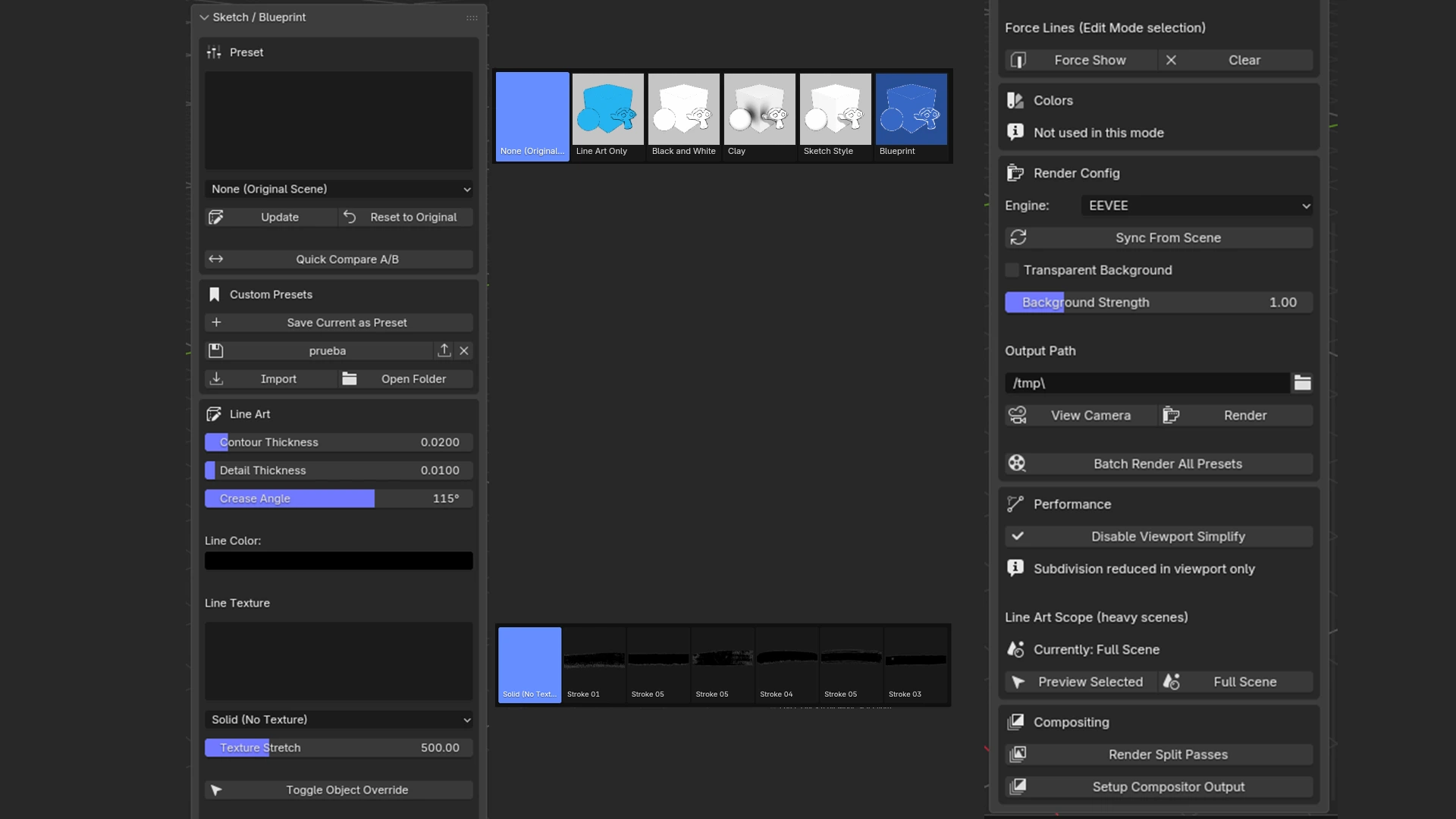

The Sketch Render Studio panel lives in the 3D Viewport, inside the Tool Shelf (N key). From there you pick the active preset, compare the result against your original scene with one click — Quick Compare A/B — and adjust contour thickness, crease angle, and line texture without leaving the viewport.

When the scene gets heavy, Viewport Simplify keeps navigation smooth; and if you switch the render engine manually, Sync From Scene matches the addon's settings in one click.

Sketch Render Studio panel open in the 3D Viewport's Tool Shelf

In practice

One scene. Five looks. One click each.

The same model, run through all 5 built-in presets. Pick one and Sketch Render Studio adjusts materials, world, and Line Art in a single click.

Render with the Black and White preset
// black & white — the line, and nothing else
Render with the Clay preset
// clay — volume before color
Render with the Sketch Style preset
// sketch style — the hand, before the machine
Render with the Blueprint preset
// blueprint — any scene, a technical drawing

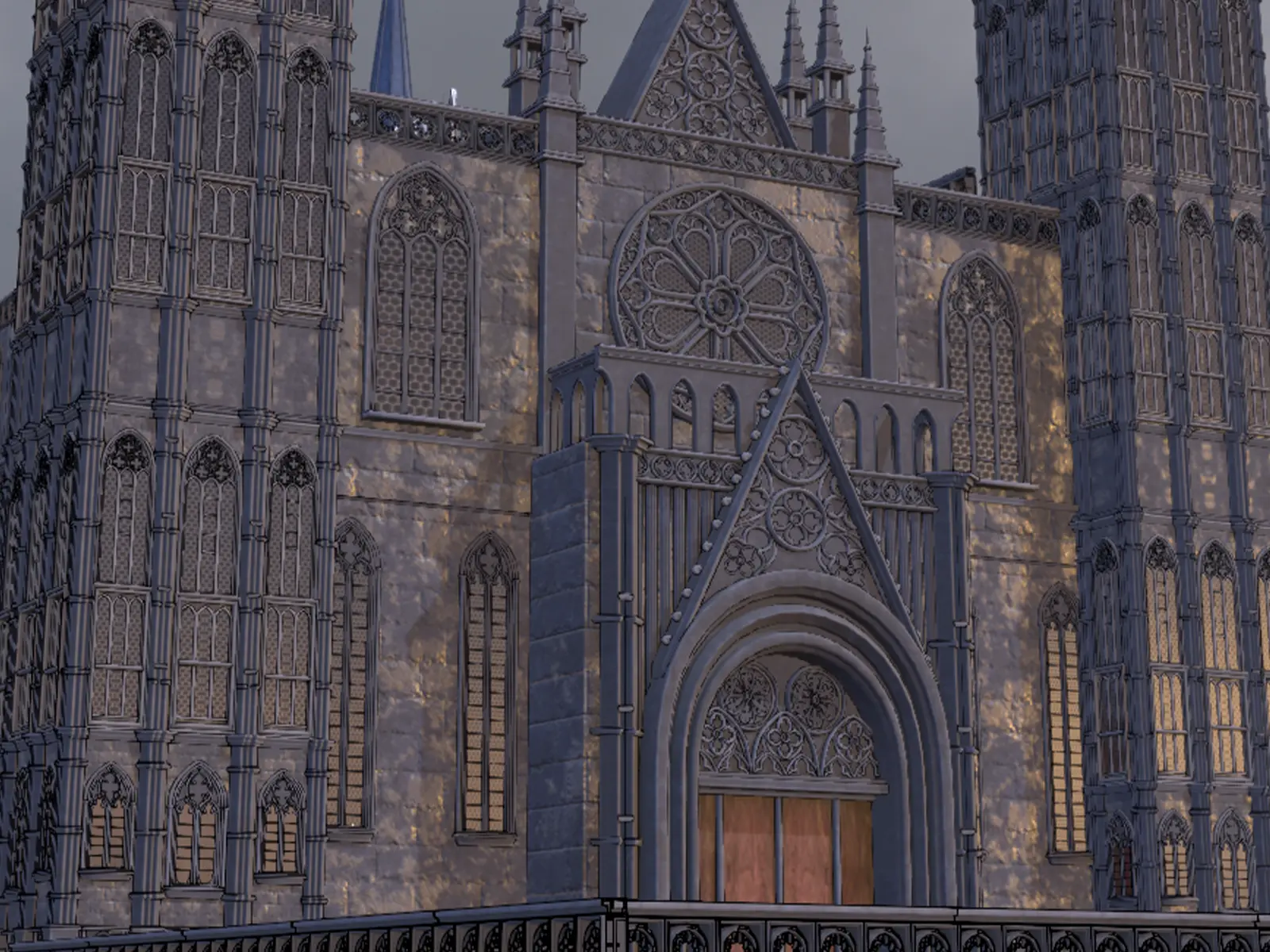

Render with the Line Art Only preset
// line art only — just the lines

See the full detail on each preset in the manual →

Custom presets

Save your own style.

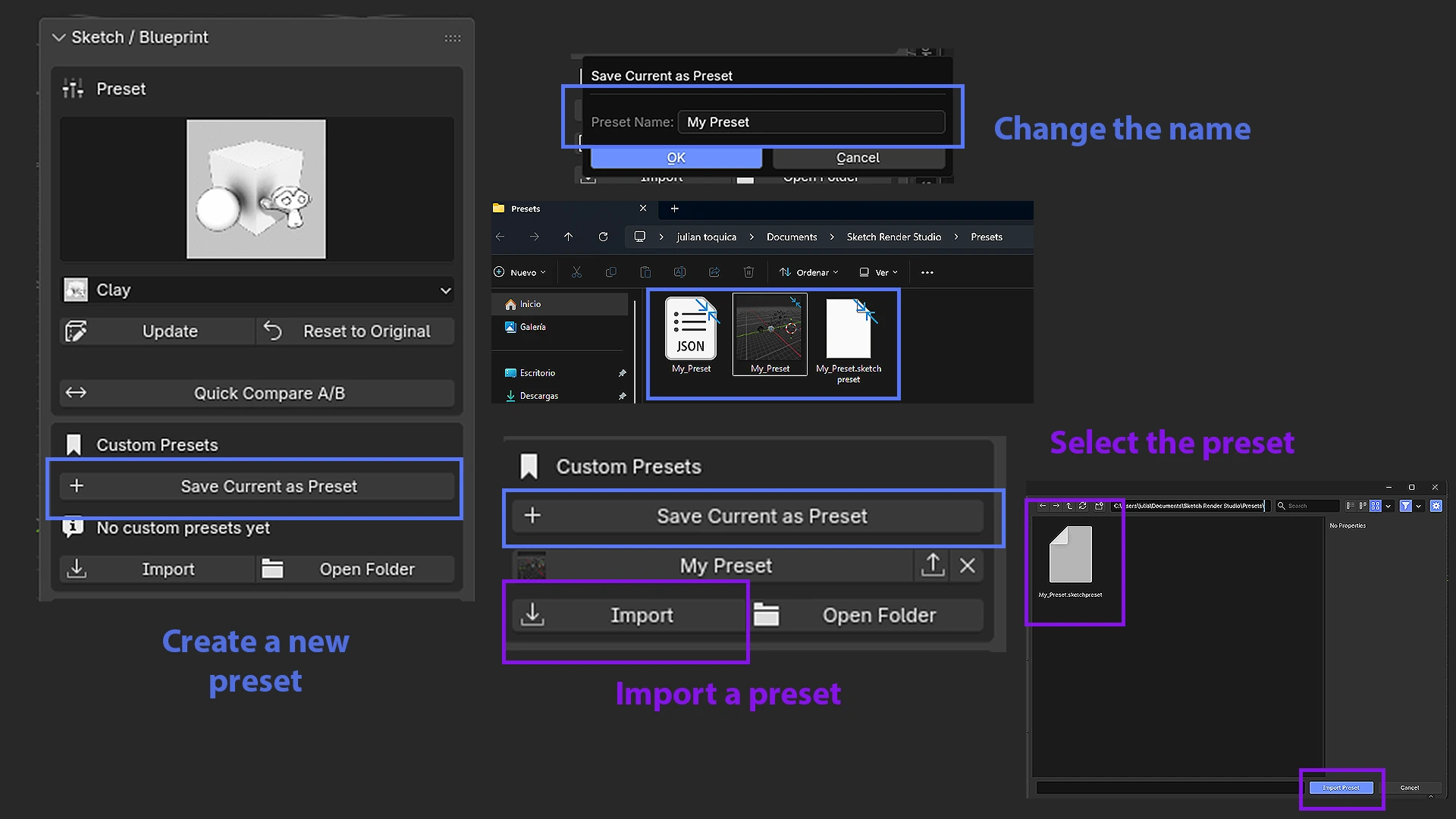

Beyond the five built-in presets, any combination of line, color, and texture can be saved as a reusable preset, with its own thumbnail.

  1. Dial in whatever look you want using the panel controls.
  2. Click Save Current as Preset.
  3. Give it a name — it'll show up alongside the built-in presets.
Saving a custom preset with its thumbnail

Batch Render

Every camera. Every style. One pass.

Automatically renders all 4 material presets across every camera in the scene, in a single run — a full set of product or booth views without repeating the process by hand.

Split Passes & Compositor

Split the layers, control each one.

Render Split Passes separates the line art from the base geometry using Holdout materials, and Setup Compositor automatically builds the node tree needed to work each layer separately.

Render Split Passes — silhouette and beauty rendered separately

Troubleshooting

When something doesn't go as expected.

The addon doesn't show up in the panel

Confirm it's enabled under Edit > Preferences > Add-ons by searching for “Sketch Render Studio”.

“No module named…” error on install

The file or folder name contains a period, which truncates the module name. Rename it without periods and reinstall.

Lines don't show up in the render

Make sure you're in camera view — Blender's Line Art system only calculates correctly from there.

Support

Questions? Let's talk.

To report bugs, get help with installation, or just show us what you built, reach out through Superhive or our support channel.

See the full manual → Superhive Store ↗
